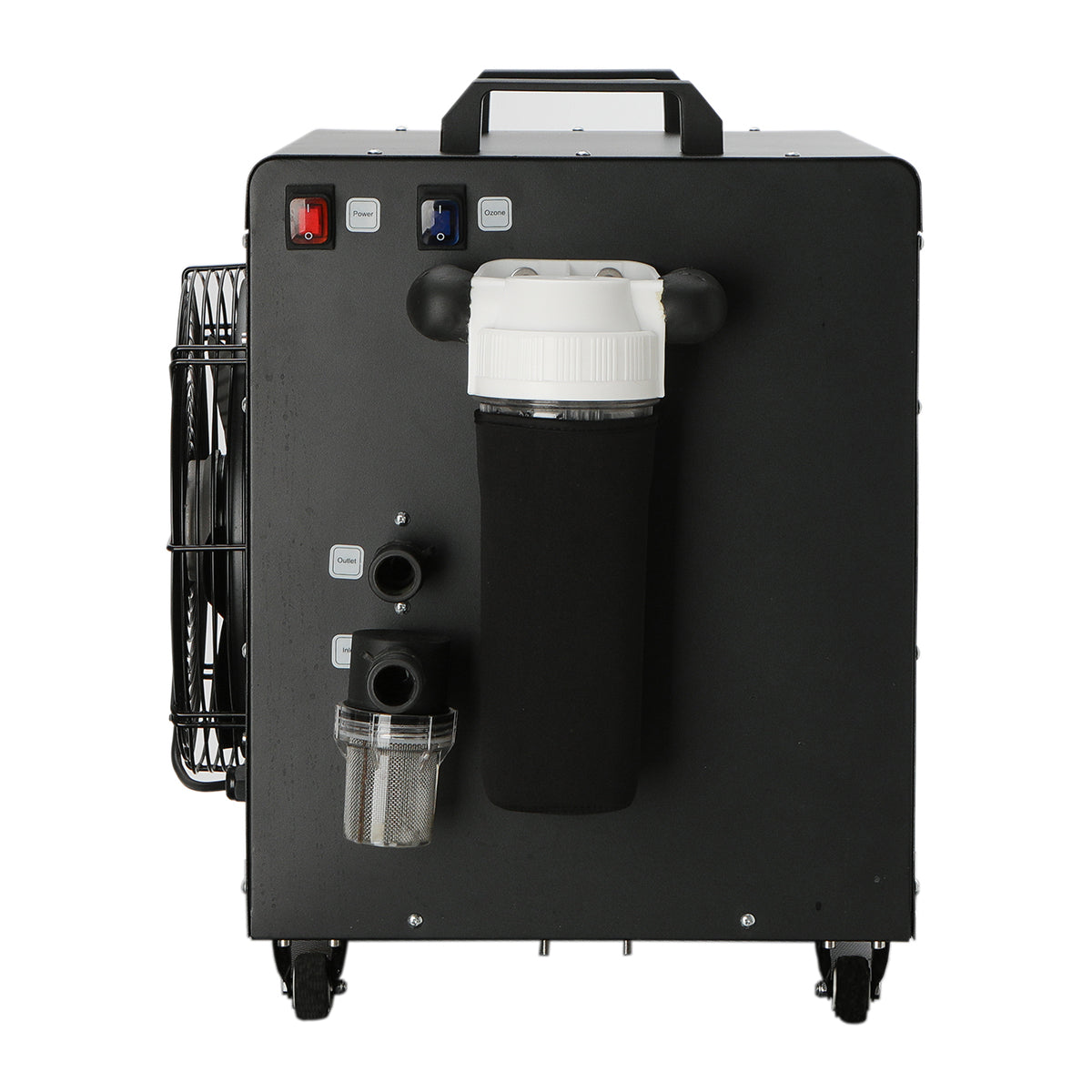

New Design ICEBATH/COLD PLUNGE Chiller IB-10 for 1000L
$3,778.00
$5,592.00
saving
$1,814.00
| /
description

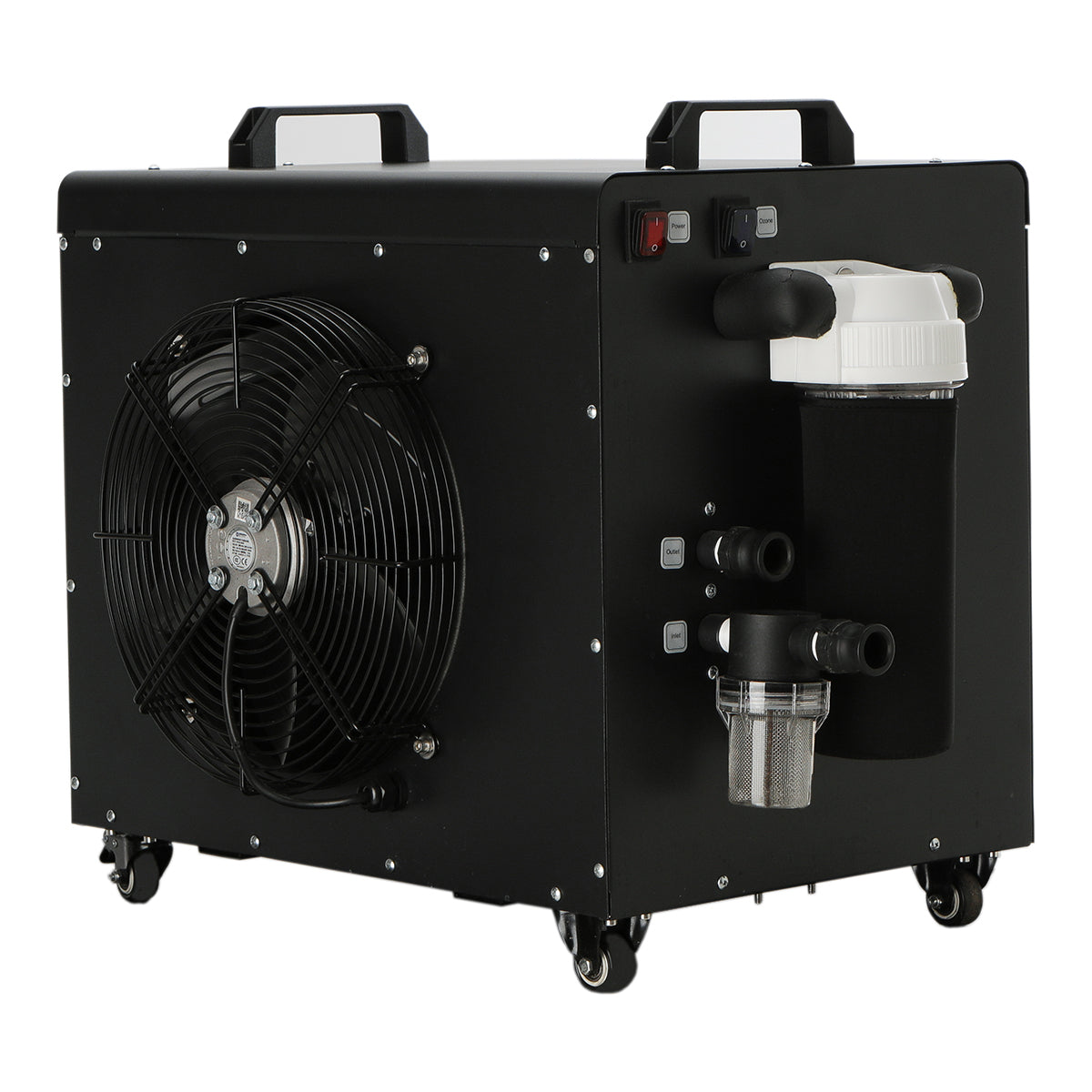

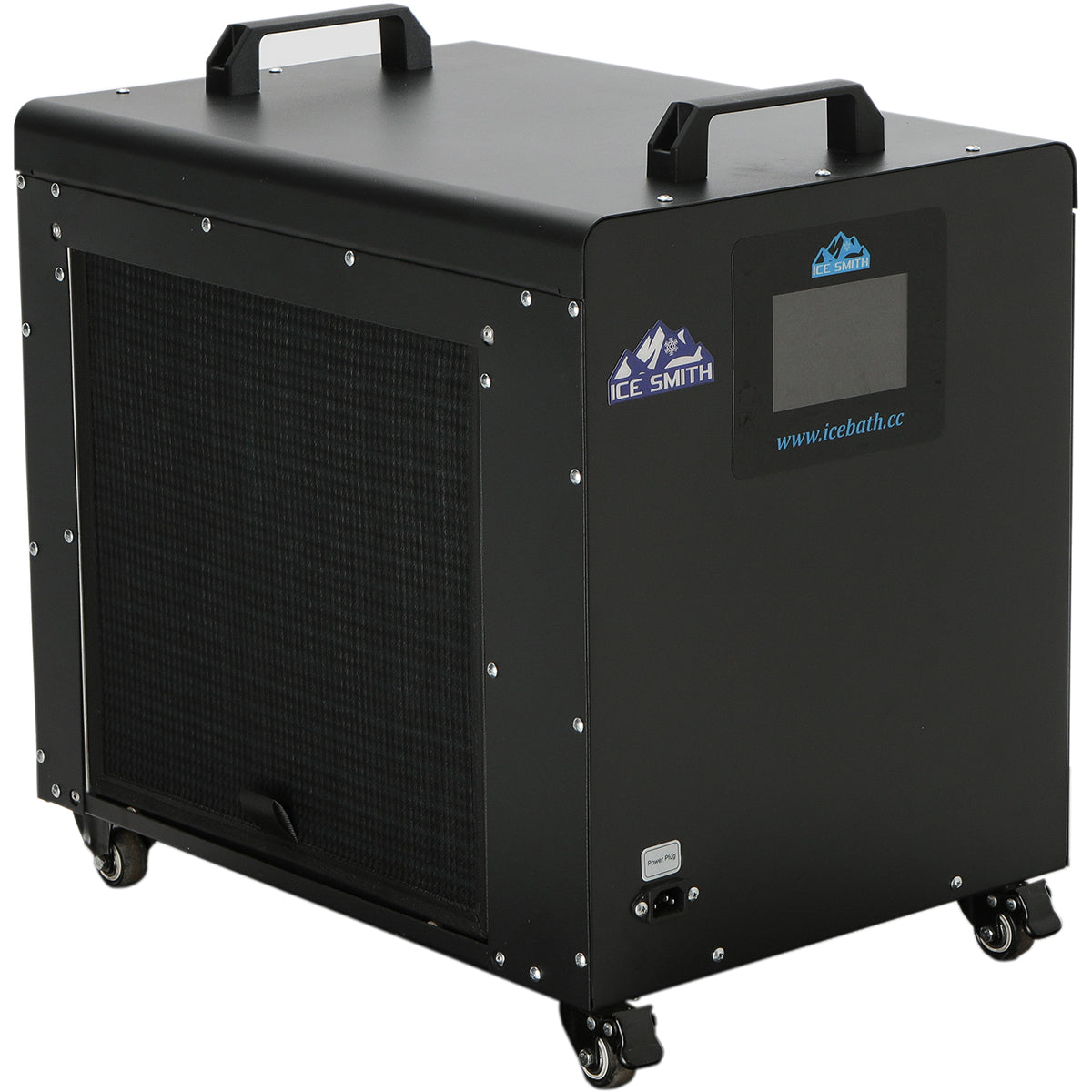

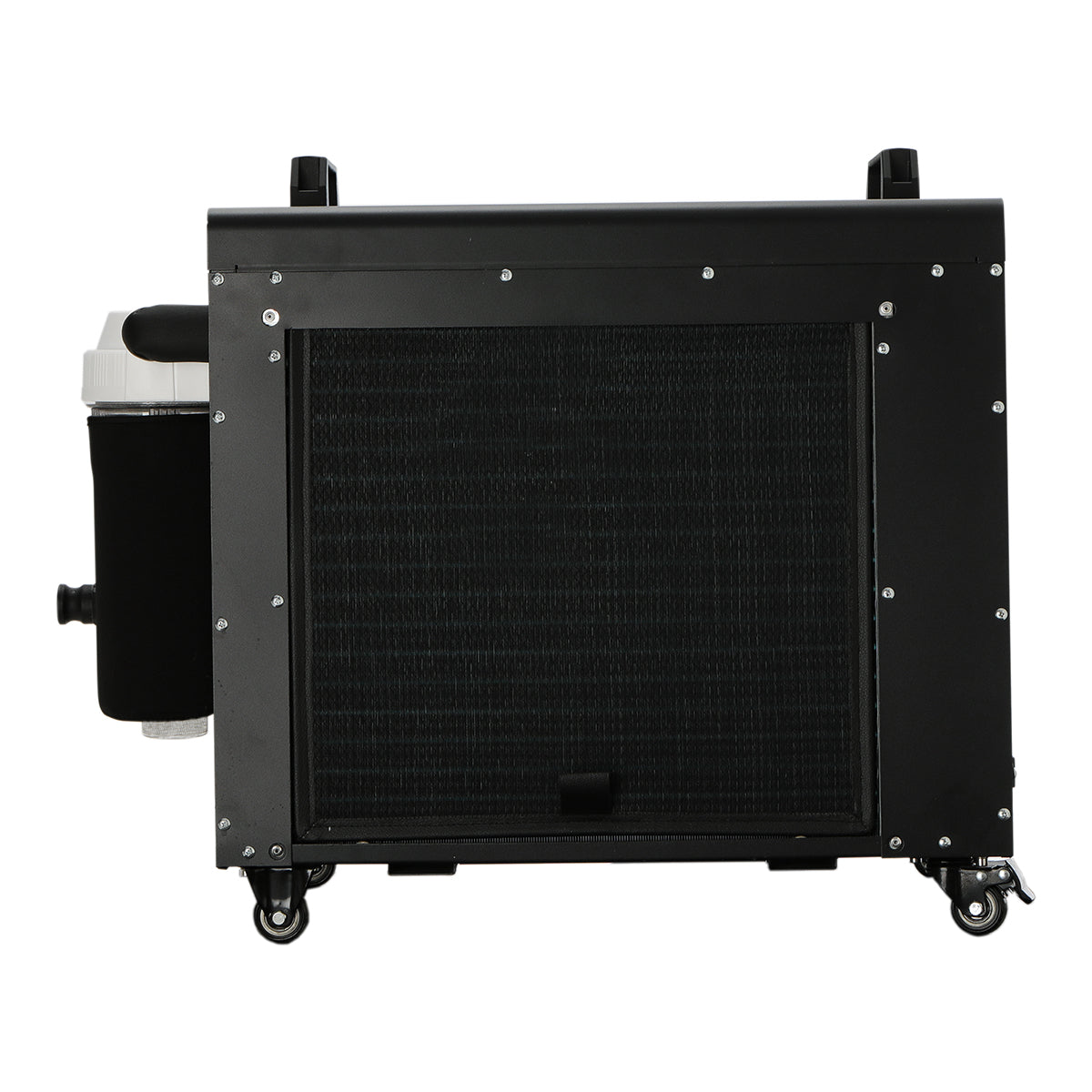

Extra powerful ice bath chiller capable of 3ºC (37.4ºF). Designed for fastest cooling of larger pools & spa baths up to 1000L.
If you operate in very hot conditions or need to cool a multi person spa or a large ICE SMITH inflatable bath, this is the perfect solution.
Quick question:
1. The equipment comes with accessories (free): water pump, filter, UV, ozone, quick connector, connecting water pipe
2. Distinction: SPA series has refrigeration and heating, IB series only has refrigeration function
3. Temperature range: 3~45 degrees Celsius
4. Warranty policy: 1 year warranty, free spare parts, remote video assistance.
5. Whether it can be used outdoors: Yes, but please cover it with a canopy.
6. Protection level: IPX4
7. Lead time: within 2 weeks
8. Shipping time: 5-6 weeks by sea, 2-3 weeks by air
9. Ambient temperature support: below 115F/45C
10. Remote use: free APP, WIFI connection, timing, and remote start and stop.
11. Pump: flow rate 25L/Min, automatic water shortage protection
12. UV work: Synchronized with the water pump, it works when it is powered on
13. Ozone: It works synchronously with the compressor, can be turned off separately, and has an on/off button (timing function is optional, and the accessory fee is 30 USD)
Specifications
Appendix
- Filter
- Water pump
- UV
- Ozone
- Pipe
- RCD/GFCI
- LCD Controller
- WIFI APP
- Handle
- Wheels
- Quick Connector
- Free Filter Element
Operation
- Lowest Temperature: 3ºC (37.4ºF) Software limited for safety
- Highest Temperature: 45ºC
- Automatic Operation: ONE TOUCH START intelligent power management system
- 24/7 Operation: Allowed
Power
- Line Voltage: Manufactured in either 110V or 220V (NOT MULTI-VOLTAGE)
- Cooling power: 5800 Watts
- Heating Power: Cooling And Heating
- Running Power 220V (& Max.): 7.5 Amps (15 Amps)
- Running Power 110V (& Max.): 15.0 Amps (30 Amps)
- Frequency: 50 Hz / 60 Hz
- Compressor: Panasonic or GMCC or Mitsubishi High Efficiency Rotary
- Refrigerant Gas: Hychill Minus 410 - Zero environment effect –
Finishes & Materials
- Chassis: Galvanized steel
- Coatings: Heat cured high strength epoxy – Matte Black
- Heat Exchanger: 304 Stainless Stell
- Heat Pump Plumbing: Commercial Grade Copper
- Handles: Plastic

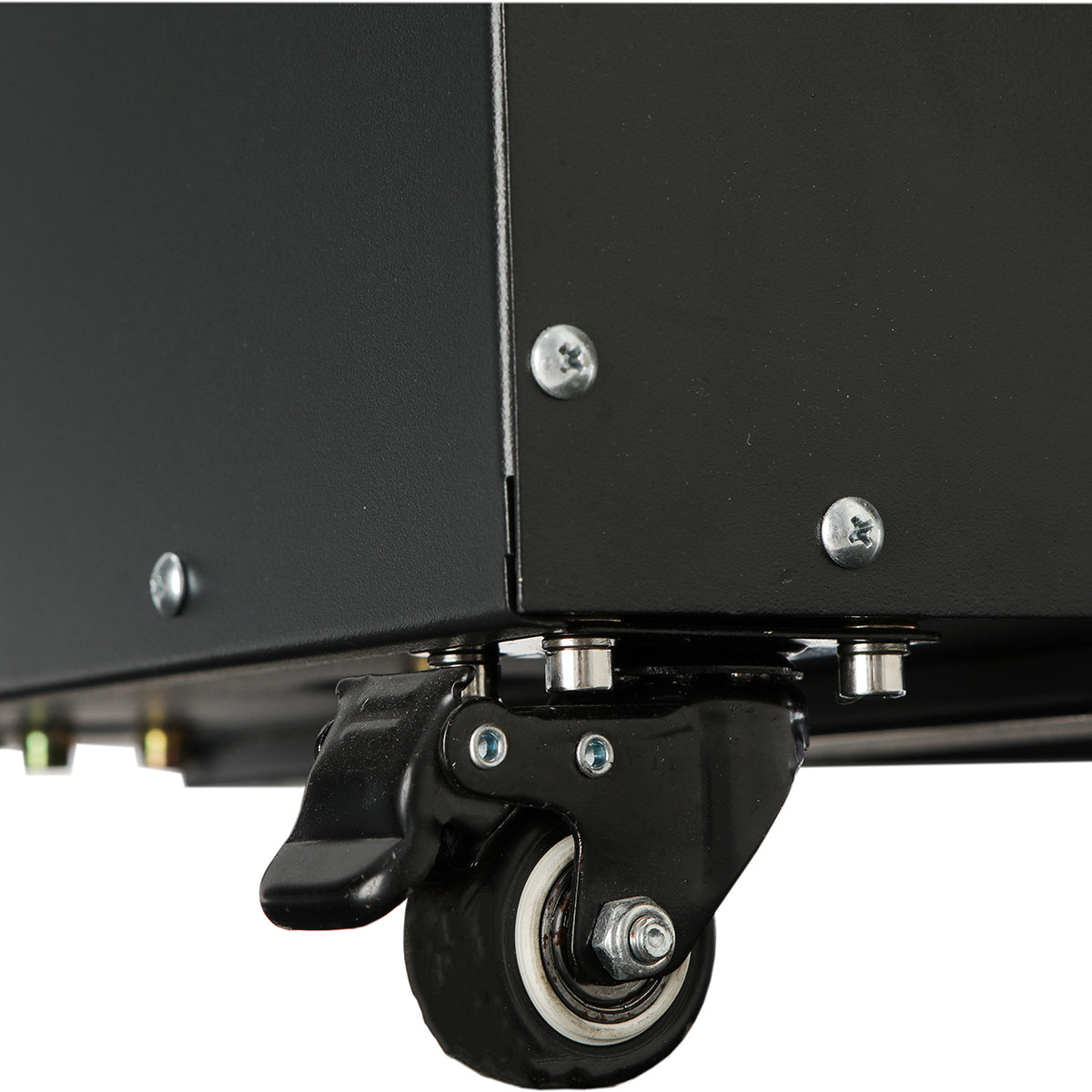

- Wheels: Polyurethane
- Side Panels: Galvanized steel
Pool Compatibility
- Recommend pool size: Up to 2000 L
- All ICE SMITH POOLS have connections to IC included as standard
- All OTHER POOLS require 1/2 female water inlet and 1/2 female water outlet (1/2 inch)

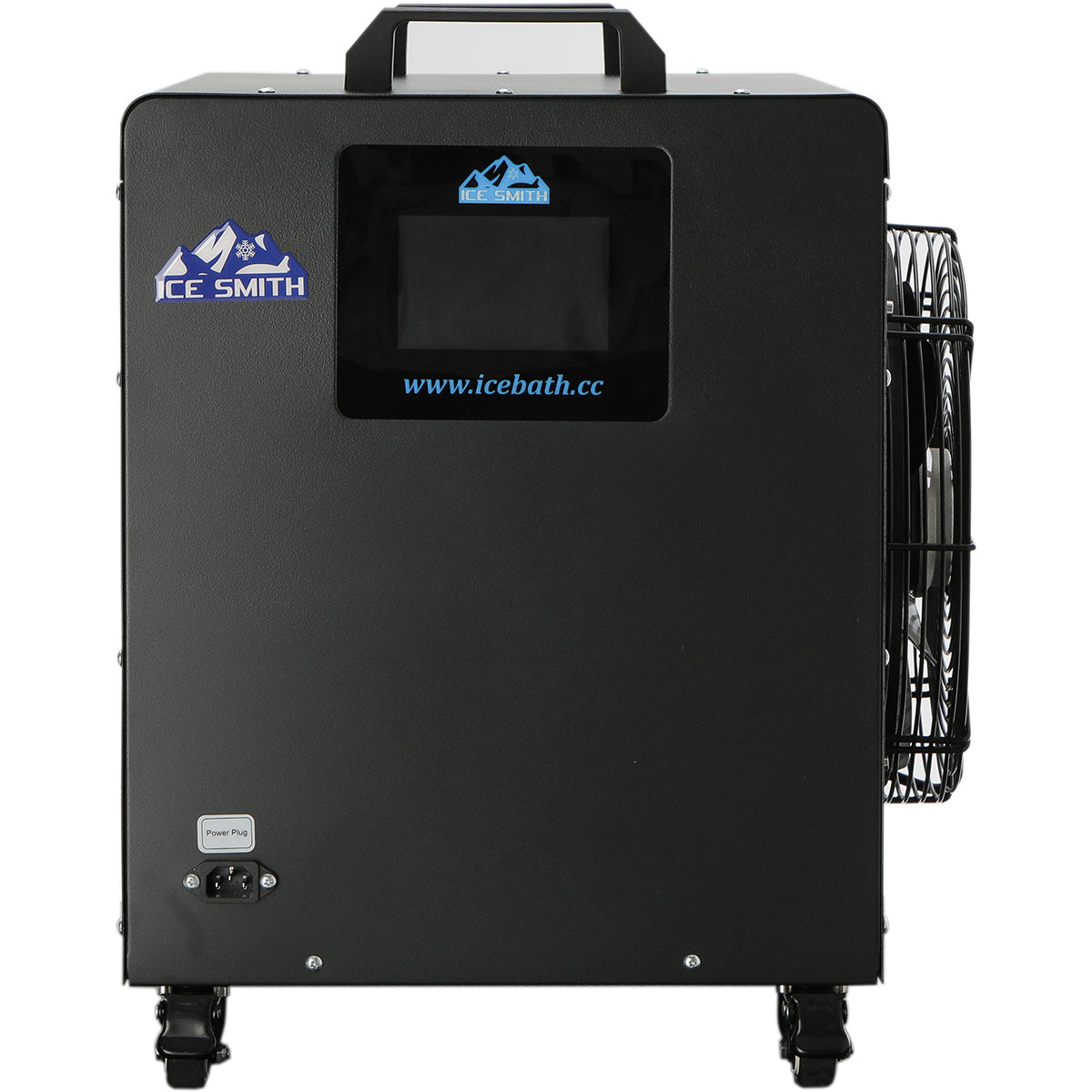

Display
- Software-chip: Developed by ICE SMITH
- Remote Control Screen: Optional
- Remote Control over WiFi: Yes with built-in screen model
Electrical
- Earth Leak Device: Yes 30 Milliamps instant shut down for maximum user safety

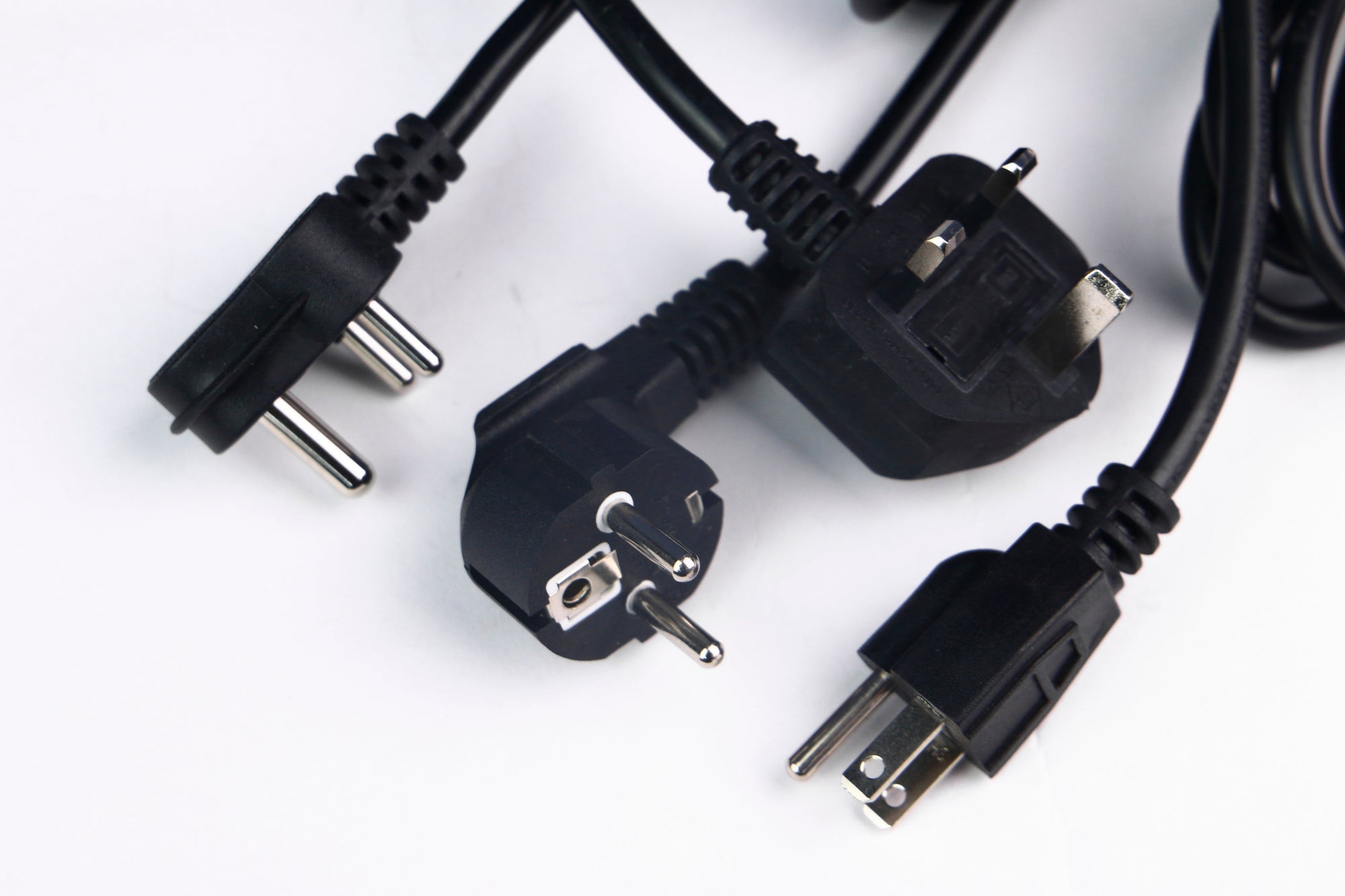

- Power Plug: 3 Pin heavy duty to suit country (UK, US, AUS or EU)

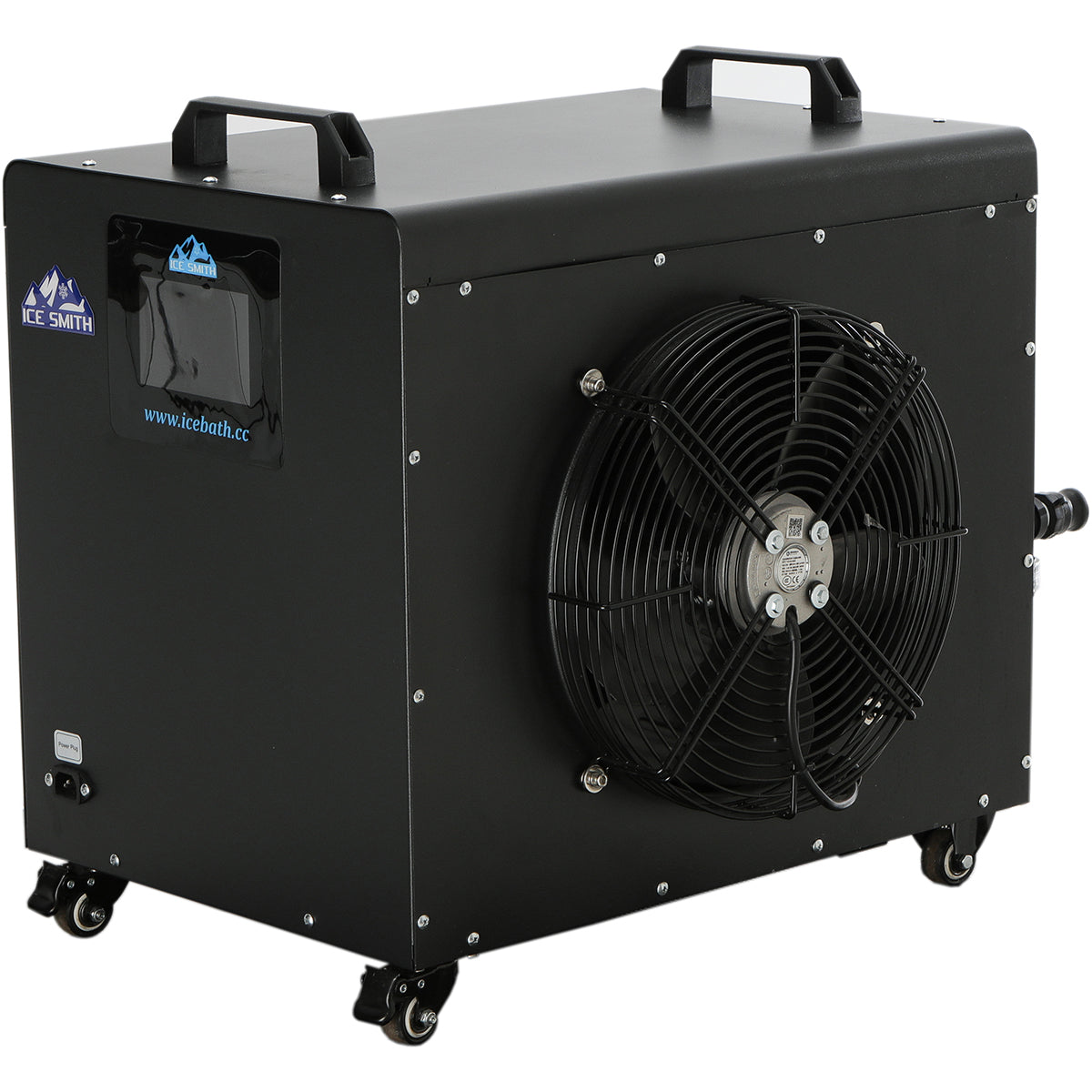

- Air flow Capacity: Low noise fan 2000 cubic ft per minute
- Fan Size: 300 mm
- Sound: 59 dBA tested at 1.5m
- Heat Pump Type: Rotary Compressor
- Water Pump: Powered by the Compact via the built-in RCD/GFCI electrical safety device
Country of origin:designed and made in Singapore or China
